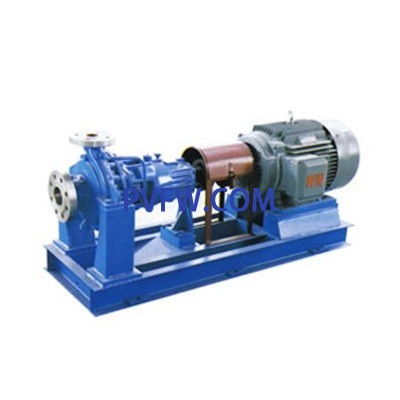

ZE系列化工流程泵

ZE石油化工流程系,是根据API610(第八版)規范設計的。应用范围系遣合輸送清沽或含有顆粒的液体,低温或高温的液体,中性或有腐独性的液体,耐高温高圧。主要用途。燎油厂、石油化学工业、煤加工工业、化学工业、造紙、紙

产品信息

产地中国 » 江苏 » 泰州市

结算币种人民币

所属分类 ZE系列化工流程泵

上架时间 2022-12-27

立即咨询

电话咨询收藏产品

正品保障

快速交付

专业支持

产品介绍

ZE石油化工流程系,是根据API610(第八版)規范設計的。应用范围系遣合輸送清沽或含有顆粒的液体,低温或高温的液体,中性或有腐独性的液体,耐高温高圧。主要用途。燎油厂、石油化学工业、煤加工工业、化学工业、造紙、紙黎並、制糖址和普通流程エ业。

详细规格

产品选型（）

NO.	型号	流量 (m³/h)	H (m)	N (r/min)	P (kw)	η (%)
1	ZE200-315	11.5/5.8	12/1	2950/1475	5.5/1.0
2	ZE200-400	16/8.1	70/17.7	2950/1475	11/1.5
3	ZE200-450	10/20	128/32.3	2950/1475	30/5.5
4	ZE200-500	28/14	8/1	2950/1475	5.5/1.1
5	ZE200-560	29/14.5	53/13	2950/1475	11/1.5
6	ZE200-630	32/16	78/19.5	2950/1475	18.5/3
7	ZE250-315	42/21	115/29	2950/1475	37/5.5	29/27
8	ZE250-400	50/25	34/8.4	2950/1475	11/1.5
9	ZE250-500	62/31	52/13	2950/1475	18.5/3
10	ZE250-560	70/35	82/20	2950/1475	4/30
11	ZE250-630	87/44	115/28	2950/1475	11/1
12	ZE300-400	82/41	194/48	2950/1475	110/15	48/44
13	ZE300-500	93	248	2950	132
14	ZE300-560	94/47	8/1	2950/1475	15/2.2
15	ZE300-630	103/51	54/13.5	2950/1475	4/30
16	ZE400-500	127/64	82/20	2950/1475	45/7.5
17	ZE400-560	141/70	127/33	2950/1475	90/15
18	ZE400-630	170/85	187/46	2950/1475	160/22	62/58
19	HZA/HZE40-25-200	206	238	2950
20	HZA/HZE40-25-200	162/81	29/7.2	2950/1475	3/22
21	HZA/HZE50-25-250	193/95	50/12.5	2950/1475	45/5.5
22	HZA/HZE50-25-250	230/115	79/20	2950/1475	11/1
23	HZA/HZE50-25-315	250/125	126/31	2950/1475	132/18.5
24	HZA/HZE50-25-315	300/150	194/48	2950/1475	37
25	HZA/HZE80-40-160	327	258	2950
26	HZA/HZE80-40-160	180	75	1475	75	68
27	HZA/HZE80-40-200	320/60	11/1	2950/1475	55/7.5
28	HZA/HZE80-40-200	390/195	74/18.5	2950/1475	110/15
29	HZA/HZE80-40-250	442/220	125/32.5	2950/1475	30
30	HZA/HZE80-40-250	520/260	205/51	2950/1475	55
31	HZA/HZE80-40-315	546	260	2950
32	HZA/HZE80-40-315	300	77	1475	110
33	HZA/HZE80-50-160	335	104	1475	160
34	HZA/HZE80-50-160	360	115	1475		63
35	HZA/HZE80-50-200	305	17.5	2950/1475	160/22
36	HZA/HZE80-50-200	350	30	2950/1475	45
37	HZA/HZE80-50-250	850/426	50	2950/1475	90
38	HZA/HZE80-50-250	930	257	2950
39	HZA/HZE100-50-315	495	84	1475
40	HZA/HZE100-50-315	540	12/1	1475
41	HZA/HZE100-50-400	580	70/17.7	1475		78
42	HZA/HZE100-50-400	545	128/32.3	1475	55
43	HZA/HZE100-50-450	660	8/1	1475	132
44	HZA/HZE100-80-160	800	53/13	1475
45	HZA/HZE100-80-160	860	78/19.5	1475
46	HZA/HZE100-80-200	855	115/29	1475		80
47	HZA/HZE100-80-200	1050	34/8.4	1475
48	HZA/HZE100-80-250	1240	52/13	1475
49	HZA/HZE100-80-250	1340	82/20	1475
50	HZA/HZE100-80-315	1450	115/28	1475		86
51	HZA/HZE100-80-315	1870	194/48	1475
52	HZA/HZE100-80-400	2040	248	1475
53	HZA/HZE100-80-400	2390	8/1	1475		87.5
54	HCJ200-400	1600	38
55	HCJ32-125/0	1450	32
56	HCJ32-125	1300	26
57	HCJ32-160/0	1250	22
58	HCJ32-160	1870	74
59	HCJ32-200/0	1800	70
60	HCJ32-200	1520	52
61	HCJ32-250/0	1300	38
62	HCJ32-250	2040	98
63	HCJ40-200/0	1950	91
64	HCJ40-200	1760	74
65	HCJ40-250/0	1500	54
66	HCJ40-250	2390	125
67	HCJ40-315	2280	117
68	HCJ40-400	1960	95
69	HCJ50-125/0	1610	70
70	ZE50-25-200A/2	6.9	54.9	2950	1.5	36.4
71	ZE50-25-200A/4	3.42	14.8	1475	0.55	32.8
72	ZE50-25-250A/2	9.6	76.9	2950	5.5	26.4
73	ZE50-25-250A/4	4.8	19.8	1475	1.1	25.5
74	ZE50-25-315A/2	12	142.7	2950	11	28.2
75	ZE50-25-315A/4	6	34	1475	2.2	24.6
76	ZE80-40-160A/2	16.8	35.1	2950	2.2	54.7
77	ZE80-40-160A/4	8.4	8.8	1475	0.55	52.8
78	ZE80-40-200A/2	20.4	57.1	2950	5.5	54.7
79	ZE80-40-200A/4	10.2	13.7	1475	0.75	51.9
80	ZE80-40-250A/2	21.6	85.6	2950	7.5	48.3
81	ZE80-40-250A/4	10.8	20.9	1475	1.1	45.6
82	ZE80-40-315A/2	25.2	137.2	2950	15	42.8
83	ZE80-40-315A/4	12	35.1	1475	3	39.2
84	ZE80-40-400A/2	25.2	170.2	2950	22	38.3
85	ZE80-40-400A/4	12.6	42.8	1475	4	34.6
86	ZE80-50-160A/2	30	38.1	2950	3	61
87	ZE80-50-160A/4	15	9	1475	0.55	60.1
88	ZE80-50-200A/2	36	57.1	2950	7.5	61
89	ZE80-50-200A/4	18	14.3	1475	1.1	59.2
90	ZE80-50-250A/2	42	87.8	2950	15	59.2
91	ZE80-50-250A/4	21	22	1475	2.2	56.5
92	ZE100-50-315A/2	51	126.3	2950	22	51
93	ZE100-50-315A/4	26.4	30.7	1475	3	48.3
94	ZE100-50-400A/2	54	197.6	2950	55	46.5
95	ZE100-50-400A/4	27.6	52.7	1475	7.5	43.7
96	ZE100-50-450A/2	78	274.5	2950	75	47.4
97	ZE100-80-160A/2	60	38.1	2950	5.5	65.3
98	ZE100-80-160A/4	30	9.1	1475	1.1	61.3
99	ZE100-80-200A/2	63	60.5	2950	11	66.2
100	ZE100-80-200A/4	30	6	1475	1.5	56.5
101	ZE100-80-250A/2	69	87.8	2950	18.5	64.7
102	ZE100-80-250A/4	36	10.2	1475	3	59.6
103	ZE100-80-315A/2	78	131.8	2950	37	61
104	ZE100-80-315A/4	39	32.9	1475	5.5	58.3
105	ZE100-80-400A/2	96	186.7	2950	75	55.6
106	ZE100-80-400A/4	51	50.5	1475	11	52.8
107	ZE100-100-160A/2	96	33.9	2950	7.5	66.4
108	ZE100-100-160A/4	48	8.5	1475	1.1	65.6
109	ZE100-100-200A/2	108	54.4	2950	18.5	67.3
110	ZE100-100-200A/4	54	13.6	1475	2.2	66.4
111	ZE150-100-250A/2	138	84.1	2950	30	69.7
112	ZE150-100-250A/4	69	21.3	1475	5.5	68.8
113	ZE150-100-315A/2	150	137.2	2950	55	68.3
114	ZE150-100-315A/4	75	34	1475	7.5	61.9
115	ZE150-100-400A/2	168	208.6	2950	110	65.6
116	ZE150-100-400A/4	87	54.9	1475	15	63.8
117	ZE150-100-500A/4	108	82.3	1450	30	63.8
118	ZE150-150-200A/2	180	52.1	2950	22	68.1
119	ZE150-150-200A/4	93	13.3	1475	3	65.6
120	ZE150-150-250A/2	240	79.3	2950	75	69
121	ZE150-150-250A/4	114	20.6	1475	11	64.9
122	ZE150-150-315A/2	264	140.1	2950	90	69.7
123	ZE150-150-315A/4	132	34.8	1475	15	68
124	ZE150-150-400A/2	300	208.6	2950	200	71.1
125	ZE150-150-400A/4	156	54.9	1475	30	70.1
126	ZE150-150-500A/4	180	82.3	1475	45	67.4
127	ZE150-150-560A/4	180	109.8	1475	75	60.1
128	ZE150-150-630A/4	216	126.3	1475	90	57.4
129	ZE200-200-250A/2	360	84.7	2950	75	69.8
130	ZE200-200-250A/4	180	20.4	1475	11	70.7
131	ZE200-200-315A/2	396	134.5	2950	132	72.3
132	ZE200-200-315A/4	204	33.6	1475	18.5	71.4
133	ZE200-200-400A/2	510	213	2950	280	71.4
134	ZE200-200-400A/4	252	56.1	1475	37	70.6
135	ZE200-200-500A/4	300	87.8	1475	75	71.1
136	ZE200-200-560A/4	336	104.3	1475	90	68.3
137	ZE200-200-630A/4	360	142.7	1475	132	66.5
138	ZE250-250-315A/4	324	31.5	1475	30	70.6
139	ZE250-250-400A/4	420	56.1	1475	55	73.2
140	ZE250-250-500A/4	480	89.7	1475	110	72.3
141	ZE250-250-560A/4	510	115.3	1475	160	74.7
142	ZE250-250-630A/4	510	137.2	1475	185	72.9
143	ZE300-300-400A/4	630	54.4	1475	75	74.1
144	ZE300-300-500A/4	750	89.7	1475	185	74.9
145	ZE300-300-560A/4	810	109.9	1475	200	74.9
146	ZE300-300-630A/4	930	151.4	1475	315	74.1
147	ZE400-400-500A/4	1110	81.5	1475	185	74.1
148	ZE400-400-560A/4	1224	111.2	1475	315	74.3
